RDSO • MORTH • IRC • IS CERTIFIED PRODUCTION

Engineered Precast Catalogue

30 standard industrial units across 7 structural categories. Standardized off-the-shelf and project-customized concrete solutions precision-cured for state infrastructure and heavy commercial corridors.

Active Formwork
42 Sets
Curing Standard
Steam 24h
Daily Dispatch
350 MT
search
Sort:file_download
M45 ConcreteIRC:SP:13
SKU: TTK-CULV-4040
Drainage & CulvertsIn Batching

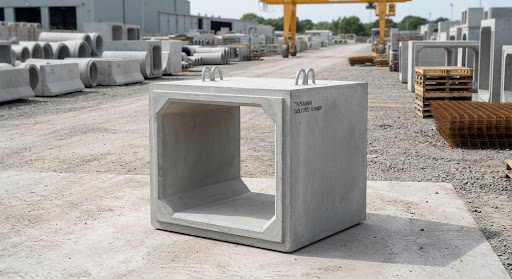

Segmental Box Culverts

Heavy-duty monolithic precast box cells engineered for highway stormwater crossings, service utility tunnels, and railway under-bridges.

Clear Span:1.5m × 1.5m to 4.0m × 4.0m
Live Loading:IRC Class 70R / SV
Segment Length:1.5m - 2.5m Standard
Joint System:Male-Female Rebated
View Specsarrow_forward
M60 High StrengthIRC:112-2020
SKU: TTK-GIRD-36M
Structural ElementsTender Custom

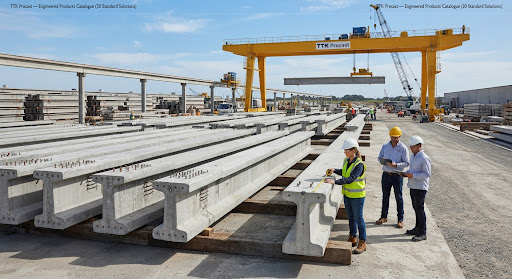

Pre-Stressed Bridge I-Girders

High-durability post-tensioned concrete bridge girders for flyovers, river crossings, and metro rail elevated viaducts.

Clear Span:18.0m to 36.0m
Web Thickness:200mm - 280mm
Prestress Strands:12.7 / 15.2mm LRPC
Delivery:Multi-axle Trailer
View Specsarrow_forward
M35 GradeIS 456 / IS 15914
SKU: TTK-UDRN-1200
Drainage & CulvertsStock Ready (800m)

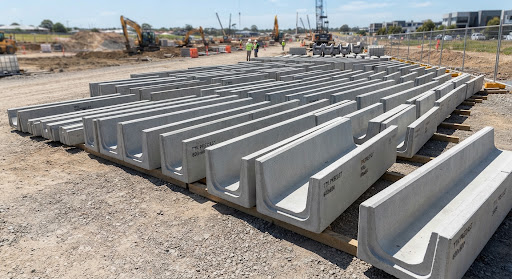

Precast U-Drain Channels

High-velocity stormwater drainage gutters with integrated precast perforated or solid concrete top traffic covers.

Internal Width:300mm to 1500mm
Depth Profile:450mm to 2000mm
Unit Length:2.0m Continuous
Cover Rating:IRC Class AA / Pedestrian
View Specsarrow_forward
M40 ConcreteBS EN 124 / D400
SKU: TTK-CHAM-1010
Chambers & ManholesIn Stock

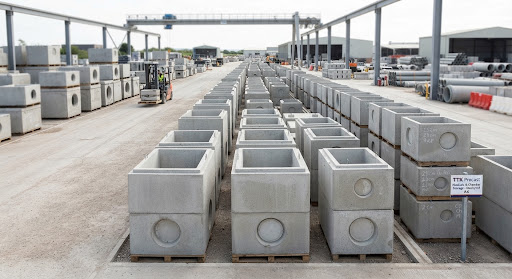

Heavy Duty Inspection Chambers

Modular 3-piece chambers with base sump, riser rings, and reinforced cover slab designed for municipal sewerage and telecom ducts.

Chamber Size:900 × 900 to 1800 × 1800
Wheel Rating:40 Tonne (D400)
Pipe Adaptors:150mm - 600mm dia
Waterproofing:Butyl Seal Strip
View Specsarrow_forward
M40 Self-CompactingIS 15916:2010
SKU: TTK-WALL-200
Wall SystemsLead Time: 12 Days

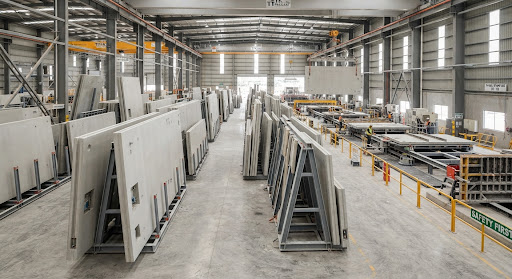

Precast Solid Wall Panels

Non-load-bearing and load-bearing perimeter shear walls with tongue-and-groove connections and cast-in electrical conduits.

Wall Thickness:150mm / 200mm / 250mm
Max Height:Up to 7.2m Single Cast
Fire Rating:4 Hours Integrity
Finish:Fair Faced Off-Shutter
View Specsarrow_forward
M40 GradeMoRTH Sec 700
SKU: TTK-RETW-500
Boundary & RetainingIn Batching

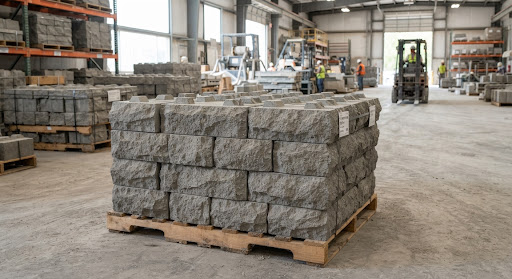

Modular Retaining Wall Blocks

Dry-stacked mechanically stabilized earth (MSE) wall fascia panels and interlocking gravity retaining modules.

Max Wall Height:12.0m with Geogrid
Block Mass:180 kg to 850 kg
Interlock:Shear Key & Pin System
Fascia Texture:Architectural Rock Face
View Specsarrow_forward
M45 StructuralIS 875 Part 3
SKU: TTK-FND-HML
Foundations & FootingsIn Stock (45 Nos)

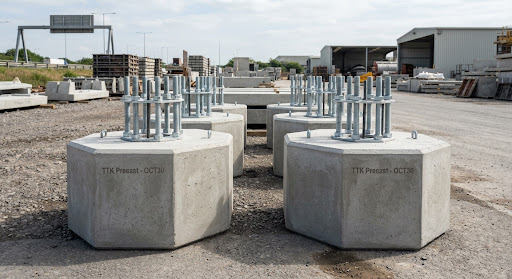

High-Mast Light & Sign Foundations

Engineered pedestal footings with precision template-cast anchor bolts for instant crane erection of overhead signboards & solar masts.

Mast Height Cap:12m to 30m High Mast
Bolt Cluster:8 to 16 × Grade 8.8 M30
Weight:4.8 to 8.2 Metric Tonnes
Installation Time:< 45 Mins on Site
View Specsarrow_forward
M50 High DensityIRC:6 / MoRTH 1700
SKU: TTK-TWIN-3030
Drainage & CulvertsTender Casting

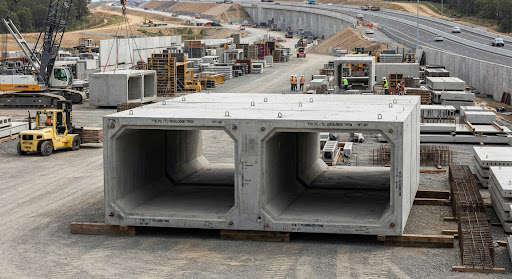

Heavy Duty Twin-Cell Box Culvert

Dual conduit high-discharge hydraulic structure eliminating in-situ shuttering bottlenecks on fast-track corridor projects.

Total Clear Width:2 × 3.0m Span (6.0m Total)
Clear Height:2.5m to 3.5m
Slab Thickness:300mm Reinforced
Earth Cushion:0.5m to 6.0m Fill
View Specsarrow_forward
Acoustic ConcreteEN 1793-1 / 2
SKU: TTK-NOISE-300
Custom InfrastructureExpressway Project Ready

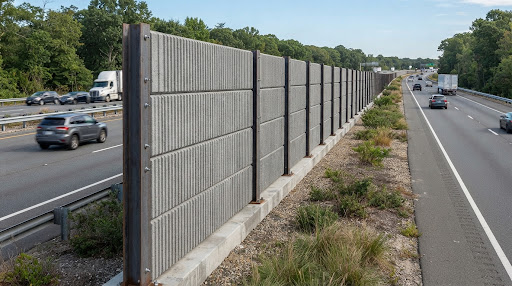

Noise Barrier Sound Wall Panels

High acoustic attenuation sound reduction panels designed for urban expressways, elevated flyovers, and rail transit track corridors.

Acoustic Class:B3 (DLR > 24 dB)
Wind Load Res:2.4 kN/m² Tested
Panel Width:3.0m - 4.0m Standard
Mounting:Steel H-Beam Flanges
View Specsarrow_forward
Quality Assurance & Material Testing

Every batch accompanied by NABL third-party test certificates.

Our in-house automated batching plant is calibrated daily. 7-day and 28-day cube compression reports, rebound hammer tests, and water impermeability data sheets are issued with every dispatch docket.
