08
Drainage products
U-drains with cover slabs
Factory-cast RCC drains with load-rated covers

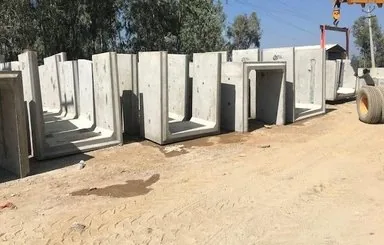

U-shaped RCC drains with cover slabs, primarily used as storm-water drains and also as cable trenches.
Size range
straighten| Description | Min (mm) | Max (mm) |
|---|---|---|
| Clear height | 300 | 3000 |
| Clear width | 300 | 3000 |
| Length | 500 | 2000 |
| Wall thickness | 50 | 200 |
| Other options | Insert plate, kerb attachment | |
Need this for a project?
Tell us the size, quantity and site, and our team will get back to you.
About this product
U-drains with cover slabs
- 1Comes in many sizes and is designed based on the expected loads.
- 2Primarily used as storm-water drains. Also used as cable trenches.
- 3Factory-cast RCC (reinforced cement concrete) for consistent quality.
- 4Standard sizes with widths, heights and lengths.
- 5The U-shaped section strengthens self-cleaning, improves drainage capacity and supports rapid water discharge.

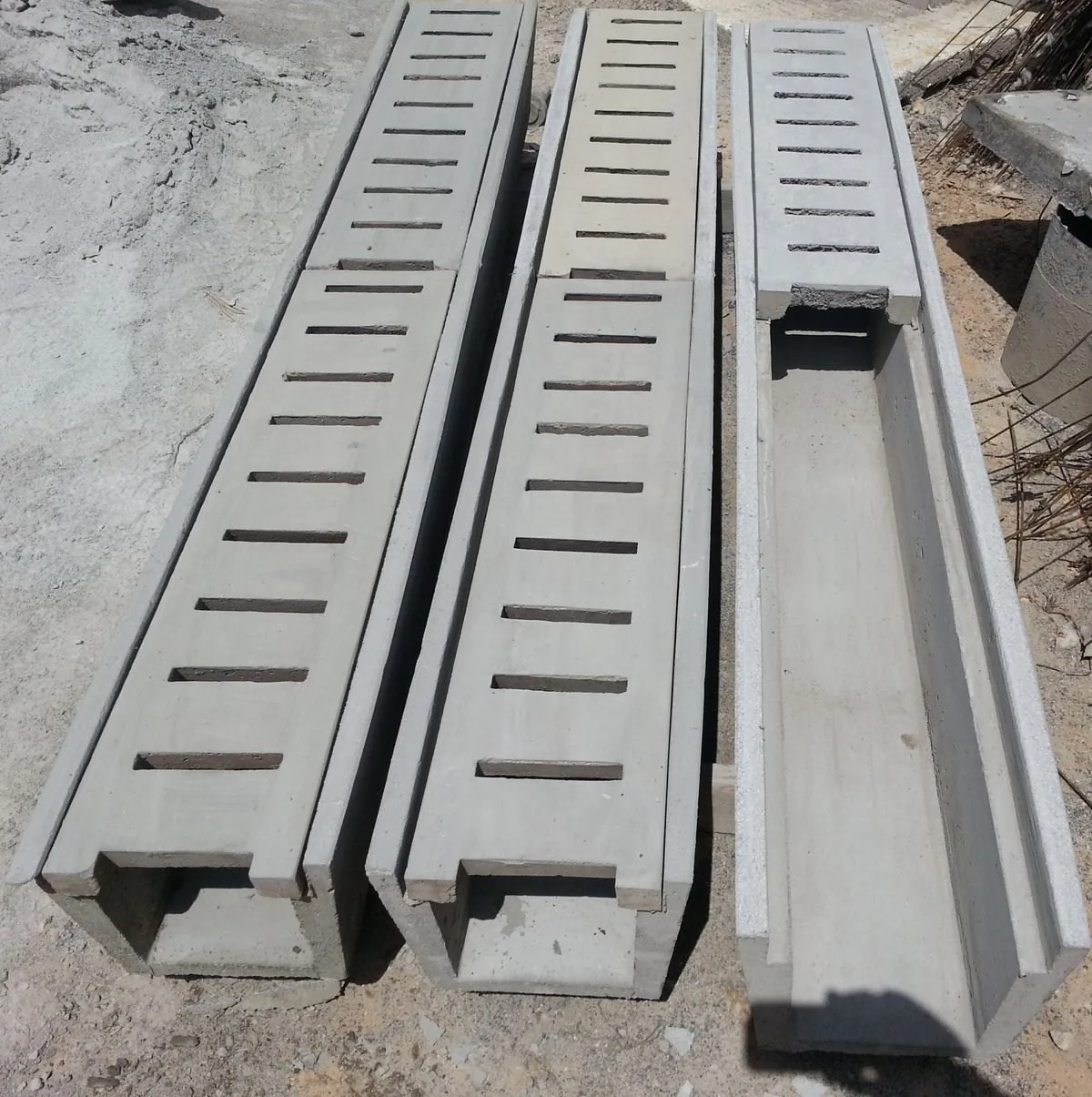

- 6Cover slabs provide protection and can be tailored for human, light or heavy traffic based on the load class.
- 7Easy and fast installation, minimal site work, and straightforward maintenance by removing the cover slabs.
All our drainage products
What they share
- check_circleAll are precast concrete products manufactured for high strength and durability
- check_circleUsed for water management, including drainage, sewage and storm-water flow
- check_circleDesigned with high load-bearing capacity to handle soil pressure and heavy traffic
- check_circleBuilt for a long lifespan, offering resistance to corrosion and harsh weather
- check_circleQuick and efficient installation, reducing labour time and on-site work
